Output Patterns
Output patterns #
Selecting Output patterns from the menu opens a find window where you can select a single pattern for further processing, create a pattern, or import a pattern from outside SICS.

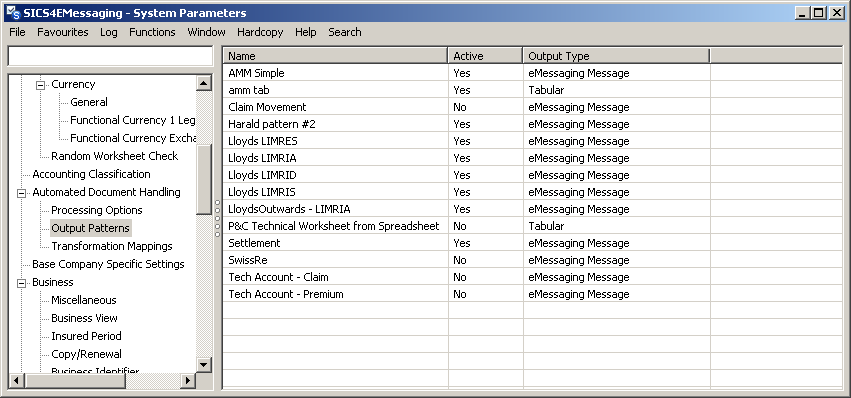

Figure 8 Output pattern choice
| Item | Description |
|---|---|
| Name | The name given to the output pattern. |
| Active | Indicates if the output pattern is active or not. |
| Output type | eMessaging Message, External or Tabular. Chosen when the pattern is created. |
The following menu options are available:
| Item | Description |
|---|---|
| View | Opens the Output pattern window in view mode |
| Edit | Opens the Output pattern window in edit mode |
| Copy | Opens the Output pattern window in edit mode, with a new name (‘Copy of ’ is appended before the existing name, but this can be changed in the edit window) |
| Create eMessage | Opens a new Output pattern window in edit mode for an eMessaging output pattern |
| Create External | Opens a new Output pattern window in edit mode for an External output pattern |
| Create Tabular | Opens a new Output pattern window in edit mode for a Tabular output pattern |
| Delete | Removes the output pattern. If the pattern is linked to a transformation mapping, a popup window will prevent you from deleting it. |
| Import | Opens an explorer window so you can find existing pattern(s) previously exported. In the explorer window you can select one or more patterns to import. |
| Export | Opens an explorer window so you can select the folder where you want to store the exported version. Several patterns can be exported at the same time. The exported patterns are in XML format. The exported patterns are saved to the selected folder, one file for each pattern, each file named the same as the pattern. Using Import and Export, patterns can be copied from one database to another. |
Output pattern window - eMessaging version #

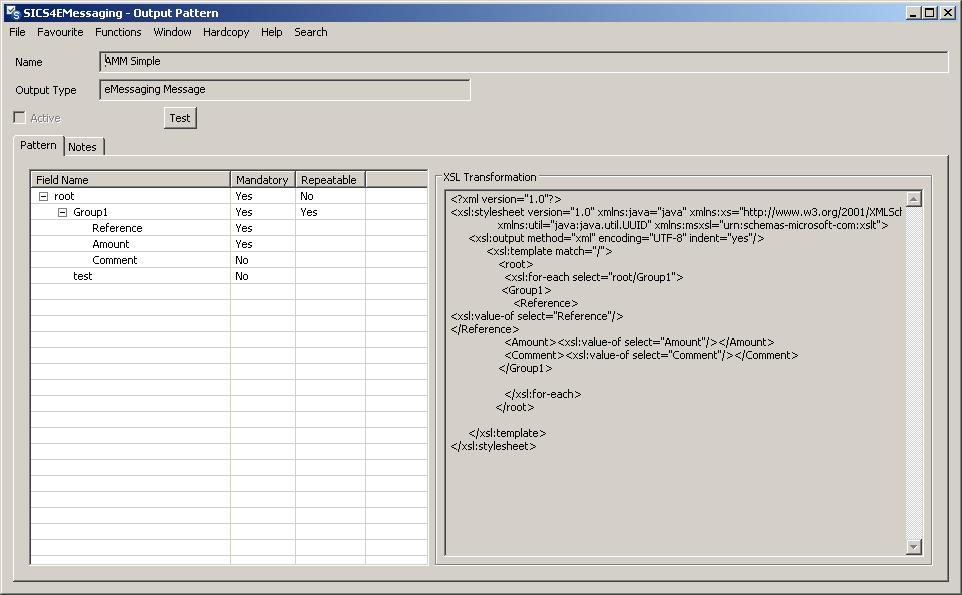

Figure 9 Output pattern - eMessaging
| Item | Description |
|---|---|
| Name | The name given to the output pattern. Must be unique |
| Output type | Will always be eMessaging Message in this version of the window |
| Active | Toggles active/inactive. |
| Test | Clicking this will open the Test Output pattern window |
| Pattern tab | This tab consists of two frames - the left hand side for the output pattern itself, and the right hand side for the XSL transformation that will convert the output pattern into an XML message. An output pattern starts with the root field. This is a group field, and is created by default when a new pattern is created. The name of the root field may be changed if desired. Additional fields and group fields may be added to the root field to define the output pattern. New items are added at the end of the current group - the current group chosen by selecting any field within the group, and is indicated by changing the background color. Group fields have a + or - in front of them, so the tree structure can be expanded or collapsed. |
The pattern table consists of the following three columns:
| Column | Description |
|---|---|
| Field name | the name given to the field. A warning is issued if a field name is not unique in the group to which it belongs. Names can be reused if in different groups within the pattern. |
| Mandatory | Indicates if the field must be populated in the output message. An error will result when transforming an incoming document if such a field is not populated. |
| Repeatable | Only set for field groups. Indicates that the field group may occur more than once. |
XSL Transformation #
This is a free format text area where an XSL transformation can be entered. The output pattern will be mapped to an XML output message using this XSL. The XML created from this transformation should be a format supported by SICS (generally, though not exclusively, matching the ACORD RLC standards). By using this transformation, we isolate the output pattern from any changes that might occur to the standard of the output XML message.
####Notes tab: The user may record notes about the output pattern on the notes tab.
Pattern table menu #
The pattern table context (pop-up) menu consists of the following items:
| Item | Description |
|---|---|
| Add field | Opens an empty Selection Details window. Field values can be populated and once the window is closed the new field will be added at the end of the current group. |
| Add field group | Opens an empty Selection Details window. Field Group values can be populated and once the window is closed the new field group will be added at the end of the current group. Saving an output pattern with an empty group (i.e. no fields created within it) will lead to a warning being issued. |
| Move up | Promotes the field or group within the current group. The option is disabled if the item is already at the top of the group. |
| Move down | Demotes the field or group within the current group. The option is disabled if the item is already at the bottom of the group. |
| Delete | Removes a field or a field group (and all the fields within the group) from the pattern. It is not permitted to delete the root element. |
| Add group attribute | Adds a special field/attribute to the current group. The @RetainData attribute is used in conjunction with the output from a RepetitionTest block in the transformation mapping. It allows multiple rows in a tabular input pattern or multiple Leaf Repeating Group occurrences in an XML pattern to create a single output occurrence. The @BlockOutput attribute is used in conjunction with the @RetainData attribute. If the value of @BlockOutput is ’true’ at the time when the ‘single output occurrence’ is about to be manifested as an output message, such output message will not be created. A typical usecase in eMessaging would be to block creation of an output message if all Leaf Repeating Group occurrences that create specific booking entries, are empty. |
| Properties | Opens Selection Details window and displays the attributes of the currently selected field. The attributes can be modified in the window. On selection of different field, the attributes in the window will be switched as per selection (similar to Input pattern Selection Details window as we have in View/Edit Transformation Mappings). |
Drag and Drop Field(s)/ Group(s) #
Drag-and-drop support is available. Select one or more fields and/or groups (using Ctrl+click) and drag them onto another field/group. The dragged fields/groups will be inserted after the target field/group as a sibling to it.
Output pattern window - External version #

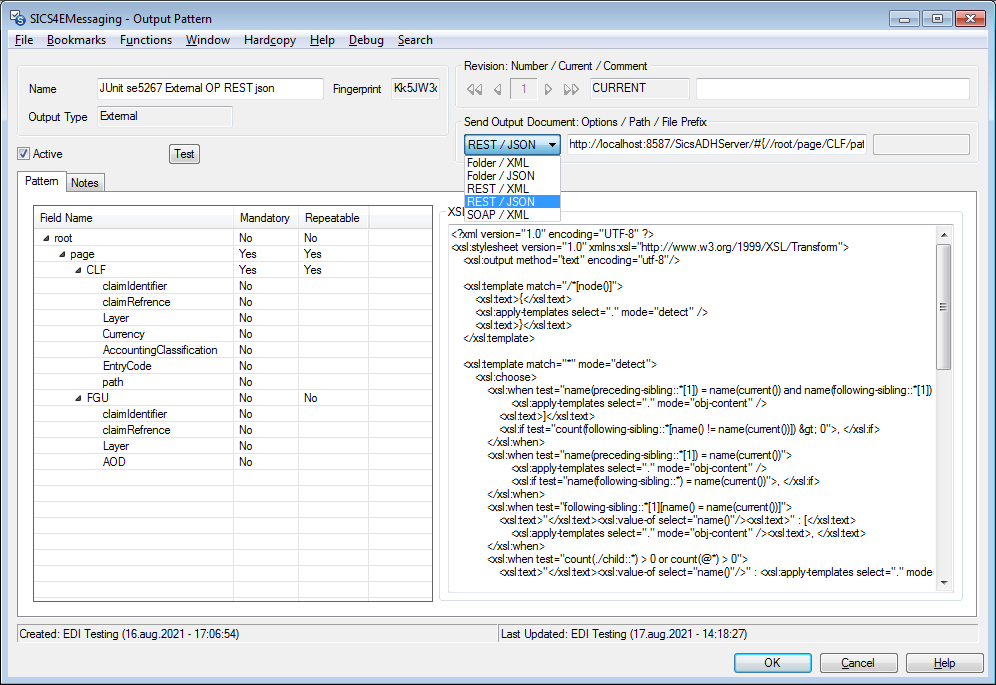

Figure 10 Output pattern - External
| Item | Description |
|---|---|
| Name | The name given to the output pattern. Must be unique |
| Output type | Will always be External in this version of the window |
| Active | Toggles active/inactive. |
| Test | Clicking this will open the Test Output pattern window |
| Send output document: Options | This drop down consists of following options. The format of documents generated after transformation and how they should be sent is configured as follow: * Folder / XML: The document will be generated in XML format and it will be saved on given folder path and file prefix, as a disk file. * Folder / JSON: The document will be generated in JSON format and it will be saved on given folder path and file prefix, as a disk file. * REST / XML: The document will be generated in XML format and it will be sent to the given URL path, using REST service’s POST request. * REST / JSON: The document will be generated in JSON format and it will be sent to the given URL path, using REST service’s POST request. * SOAP / XML: The document will be generated in XML format and it will be sent as a SOAP payload to the given SOAP end point URL path using HTTP POST request. It’s a mandatory field. |
| Send output document: Path | Folder path, REST URL path or SOAP URL path will be entered here, when user selects any one of Folder options, REST options or SOAP option in above field accordingly. For Folder options, this should be a valid existing folder path. For REST and SOAP options, this URL can support dynamic parameter substitution using data from generated output document structure using xPath syntax. Example: For REST URL http://domain.com/import/document/docID where docID should be ID of document, then user can enter http://domain.com/import/document/#{//document/identity} where //document/identity is xPath, which will get docId from output pattern field structure. It’s a mandatory field. |
| File prefix | File Prefix will be entered here, applicable only when any of Folder option has been selected. For each generated subdocument, an incrementing counting number will be also appended with file prefix. Example: if file prefix is Document, then saved file names will be Document_1.xml, Document_2.xml… so on. It’s a mandatory field, for Folder option |
| Pattern tab | This tab consists of two frames - the left hand side for the output pattern itself, and the right hand side for the XSL transformation that will convert the output pattern into an XML, JSON or SOAP document. An output pattern starts with the root field. This is a group field, and is created by default when a new pattern is created. The name of the root field may be changed if desired. Additional fields and group fields may be added to the root field to define the output pattern. New items are added at the end of the current group - the current group chosen by selecting any field within the group, and is indicated by changing the background color. Group fields have a + or - in front of them, so the tree structure can be expanded or collapsed. |
Note: The response received back from external target host after sending generated transformation result/document to the URL path specified in ‘Send output document: Path’ will be stored in API_LOG table, including a random UUID in the MESSAGE_ID column.
The pattern table consists of the following three columns:
| Column | Description |
|---|---|
| Field name | the name given to the field. A warning is issued if a field name is not unique in the group to which it belongs. Names can be reused if in different groups within the pattern. |
| Mandatory | Indicates if the field must be populated in the output document. An error will result when transforming an incoming document if such a field is not populated. |
| Repeatable | Only set for field groups. Indicates that the field group may occur more than once. |
XSL Transformation #
This is a free format text area where an XSL transformation can be entered. The XSL transformation logic after transformation should generate a valid XML, JSON or SOAP document. By using this transformation, we isolate the output pattern from any changes that might occur to the format of the output document.
By using XSL Transformation a valid XML or JSON document can be generated which is accepted by the REST webservice URL specified in “Send output document” fields. Similarly a valid SOAP document can be generated which is accepted by the SOAP webservice endpoint URL specified in “Send output document” fields.
####Notes tab: The user may record notes about the output pattern on the notes tab.
Pattern table menu #
The pattern table context (pop-up) menu consists of the following items:
| Item | Description |
|---|---|
| Add field | Opens an empty Selection Details window. Field values can be populated and once the window is closed the new field will be added at the end of the current group. |
| Add field group | Opens an empty Selection Details window. Field Group values can be populated and once the window is closed the new field group will be added at the end of the current group. Saving an output pattern with an empty group (i.e. no fields created within it) will lead to a warning being issued. |
| Move up | Promotes the field or group within the current group. The option is disabled if the item is already at the top of the group. |
| Move down | Demotes the field or group within the current group. The option is disabled if the item is already at the bottom of the group. |
| Delete | Removes a field or a field group (and all the fields within the group) from the pattern. It is not permitted to delete the root element. |
| Add group attribute | Adds a special field/attribute to the current group. The @RetainData attribute is used in conjunction with the output from a RepetitionTest block in the transformation mapping. It allows multiple rows in a tabular input pattern or multiple Leaf Repeating Group occurrences in an XML pattern to create a single output occurrence. The @BlockOutput attribute is used in conjunction with the @RetainData attribute. If the value of @BlockOutput is ’true’ at the time when the ‘single output occurrence’ is about to be manifested as an output document, such output document will not be created. |
| Properties | Opens Selection Details window and displays the attributes of the currently selected field. The attributes can be modified in the window. On selection of different field, the attributes in the window will be switched as per selection (similar to Input pattern Selection Details window as we have in View/Edit Transformation Mappings). |
Drag and Drop Field(s)/ Group(s) #
Drag-and-drop support is available. Select one or more fields and/or groups (using Ctrl+click) and drag them onto another field/group. The dragged fields/groups will be inserted after the target field/group as a sibling to it.
Authentication/authorization interface for external targets #
SICS has an extension point called the External Calls Authorization Inteface (ECAI). This should be used when external output pattern’s target URL is hosted by secured server(s) meaning only authenticated users can send requests to these servers, and these server(s) supports at least HTTP basic authentication. Before doing an external call, SICS will call the interface with this information:
- External target URL
- Intended request type (e.g. GET, POST)
- SICS userid
- SICS component (e.g. headless server, SICS desktop client)
- SICS application (e.g. PC, LIFE)
- SICS version
The ECAI applies to the SICS Workstation and SICS ADH Server only. When an External Output Pattern is configured to send the generated document(s) to a SOAP/XML, REST/XML or REST/JSON target, the ECAI will be called and will return one of the following. And appropriate action will be taken depending on the outcome of the call:
- A ‘Basic’ authentication token or OAuth 2.0 ‘Bearer’ token. ADH will use this token in HTTP(S) ‘Authentication’ header, while sending the document to the target URL.
- Nothing (i.e. empty character string), in which case ADH will not use ‘Authentication’ header.
- throw an exception, thus indicating that the user is not authorized, in which case ADH transformation will be failed.
This is a Java interface which is by default active. DXC provides a default implementation which will return nothing (empty character string) on the assumption that the external target server does not require user authentication. The client may create a Java implementation based on their own security configuration, add (plug in) the implementation to the installed SICS runtime.
DXC’s default implementation of ECAI #
Please see sics.externalcallauthorizationinterface.jar in the installation’s \lib folder, it contains following:
- ECAI Java interface
com.csc.sics.externalcallauthorizationinterface.SicsExternalCallAuthorizationInterface. - DXC provided default implementation
com.csc.sics.externalcallauthorizationinterface.impl.SicsExternalCallAuthorizationInterfaceImpl. - DXC provided ‘Basic’ authentication example
com.csc.sics.externalcallauthorizationinterface.impl.SicsExternalCallAuthorizationInterfaceExampleBasicAuthImpl.
To use basic authentication token example following system environment variables must be set:
SICS_EXT_CALL_BASIC_AUTH_USERNAMEfor user nameSICS_EXT_CALL_BASIC_AUTH_PASSWORDfor password
Installing ECAI in SICS desktop client #
A client wanting to use the ECAI for real in SICS desktop, would have to program a bespoke Java implementation of com.csc.sics.externalcallauthorizationinterface.SicsExternalCallAuthorizationInterface. The name of the client implementation must be provided in the SICS installation file: sics.global.resource.registry.properties.
For example, the following line will tell SICS to use an instance of com.csc.sics.externalcallauthorizationinterface.impl.SicsExternalCallAuthorizationInterfaceImpl.
ExternalCallAuthorizationInterface=com.csc.sics.externalcallauthorizationinterface.impl.SicsExternalCallAuthorizationInterfaceImpl
Installing ECAI in SICS ADH server #
A client wanting to use the ECAI for real in SICS ADH server, would have to program a bespoke Java implementation of com.csc.sics.externalcallauthorizationinterface.SicsExternalCallAuthorizationInterface. The name of the client implementation must be provided in the SICS ADH server web configuration file: WEB-INF/web.xml.
For example, the following line will tell SICS to use an instance of com.csc.sics.externalcallauthorizationinterface.impl.SicsExternalCallAuthorizationInterfaceImpl.
<context-param>
<param-name>ExternalCallAuthorizationInterface</param-name>
<param-value>com.csc.sics.externalcallauthorizationinterface.impl.SicsExternalCallAuthorizationInterfaceExampleBasicAuthImpl</param-value>
</context-param>
Output pattern window - tabular version #

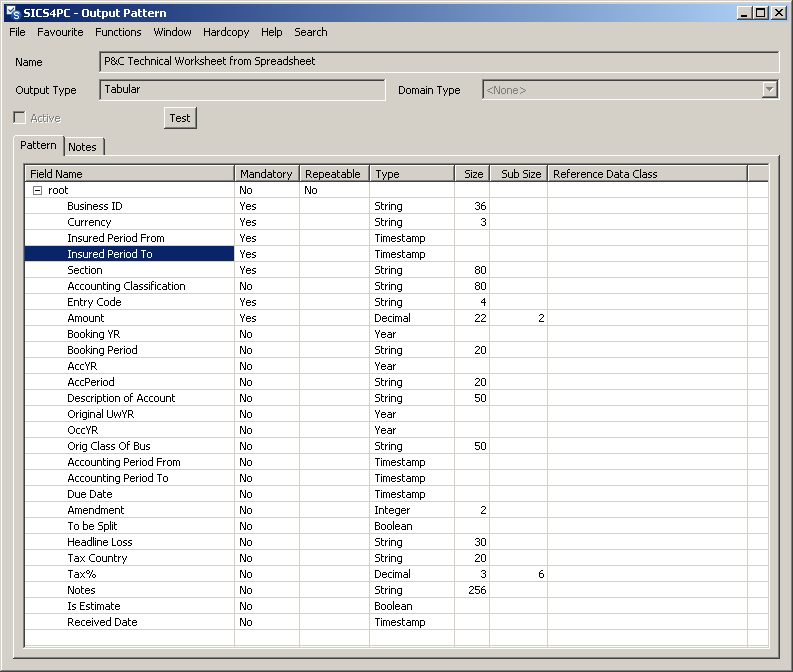

Figure 11 Output pattern - tabular
To be continued…
Test Output Pattern #

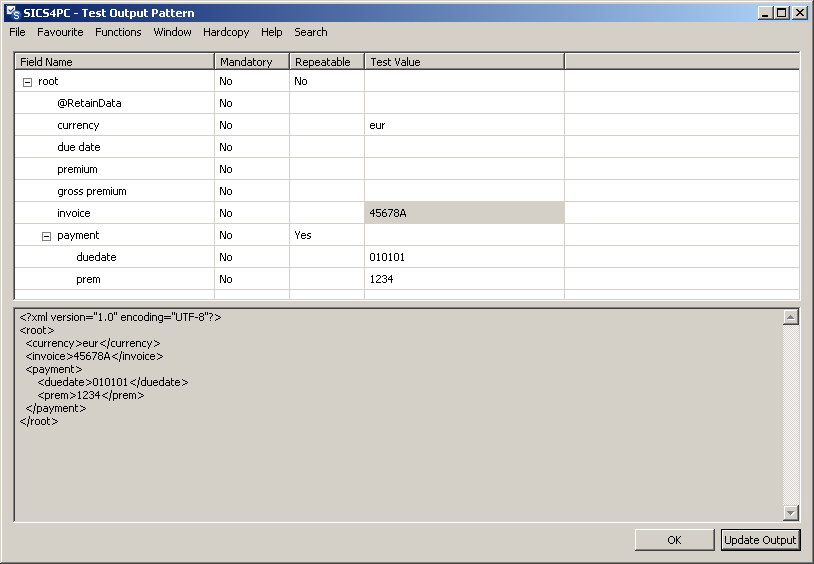

Figure 12 Output pattern test
Clicking the Test button on the Output pattern window opens the Test Output pattern window. This allows you to check that the output pattern, and the XSL transform is working as you expect. Test values can be entered for any field, but must be entered for every mandatory field before it will work. Click on Update Output to see the result of the XSL transformation in the lower frame.
