Verify correct startup of SICS API Server

Verify correct startup of SICS API Server

Verify SICS API Server startup using the SICS API Server Management console #

SICS API Server comes with a rudimentary management console which can be found at:
http://<Tomcat-installation:port>/SicsServer/SicsServerManagementConsole
and looks like this:

When SICS API Server is ready to process SOAP messages the status will be “Running and ready since date/time and the flag will be green:

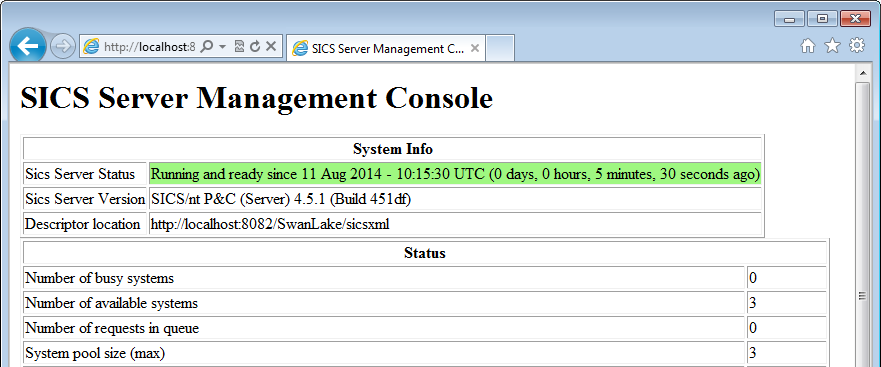

Figure 9 - SICS API Server Management Console Green Status

Verify SICS API Server startup by inspecting the log files #

SICS API Server writes important startup messages to the SicsServer.log file (see paragraph "” above for where to find/how to set up this logfile.

The last line in the logfile be SICS Server Started and Ready. Here’s an example of the last 5 lines in this file for a successful startup:

02.03.2016 08:24:43.629Z INFO  WSDL parser finished, using 81 seconds.
02.03.2016 08:24:43.645Z INFO  Finished reading xml files.
02.03.2016 08:24:44.146Z INFO  Finished reading mapping specs
02.03.2016 08:24:44.162Z INFO  SICS Server Interface Started
02.03.2016 08:24:44.162Z INFO  SICS Server Xml Compatibility Type: Axis
02.03.2016 08:24:44.162Z INFO  SICS Server Started And Ready

Verify SICS API Server using sample SOAP calls #

The SICS Web Service Tester tool is a simple tool which can be used to test SICS API Server.

  • Install the SICS Web Service Tester tool
  • Start the tool
  • Go to the “Settings” tab
  • Select Server = “SICS 4 (Java)”

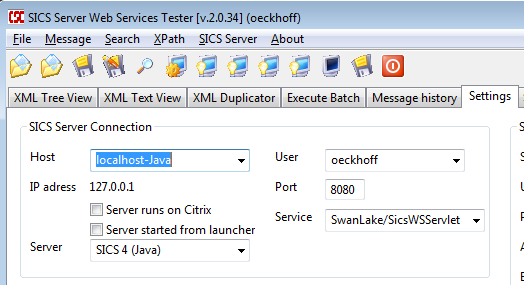

Figure 10 - SICS Web Services Tester

  • Set server hostname/IP.

This should be the name of the server running Tomcat. In the example above SICS API Server runs on the local host.

  • Set server port number.

This should be the port on which Tomcat is set up. The default value for Tomcat is port 8080.

  • Set Service name.

This should be SicsServer/SicsWSServlet.

  • Check SICS API Server availability by choosing from the menu SICS Server -> Check SICS Server Connection (Ctrl-R) or press the icon with tooltip “Check if SICS Server is available”. The answer should be “SICS Server is available”.
