Setup and configuration

Setup and configuration

Requirements #

  • Java 17 or later runtime environment.
  • For best performances, the index should be stored on a unit having a low random-access IO latency, like a SSD.

SICS Operational Reporting Server #

SICS Operational Reporting Server is an analytics and visualization web platform to give real-time visualization of operational data within SICS.

SICS Operational Reporting Server Installation #

SICS Operational Reporting Server is a Web Application and can potentially be deployed in any Application Server. It has been successfully tested using Tomcat 10.1.

For deploying an instance of SICS Operational Reporting Server it is enough to deploy SicsOperationalReportingServer.war using the standard procedure for the chosen Application Server.

The WAR file can be found in the SICS delivery folder.

SICS Operational Reporting Server Configuration #

Enable Basic Authentication #

To enable basic authentication, uncomment the auth-constraint element in the security-constraint element. Map the user or group to the security role: sics-operational-reporting in the application server.

<security-constraint>
  <web-resource-collection>
    <web-resource-name>SICS Operational Reporting Server</web-resource-name>
    <url-pattern>/*</url-pattern>
  </web-resource-collection>
  <auth-constraint>
    <role-name>sics-operational-reporting</role-name>
  </auth-constraint>
  <user-data-constraint>
    <!-- To automatically redirect any access via HTTP to HTTPS, set transport-guarantee to 'CONFIDENTIAL' -->
    <transport-guarantee>NONE</transport-guarantee>
  </user-data-constraint>
</security-constraint>

Enable Database Authentication #

To enable database authentication, the init-param: enableDatabaseAuth must be set to true and a database connection provided by the JNDI DataSource: jdbc/sor. You can configure the JNDI DataSource in META-INF/context.xml or through the application server administration pages.

<init-param>
  <description>
    Enable database authentication.
    Requires a database connection provided by JNDI DataSource: jdbc/sor
    Defaults to false.
  </description>
  <param-name>enableDatabaseAuth</param-name>
  <param-value>true</param-value>
</init-param>

Logging #

Server logging can be configured in WEB-INF/classes/log4j2.xml.

Connect SICS Operational Reporting Server to Solr for Operational Reporting #

SICS Operational Reporting Server requires a connection to Solr for Operational Reporting where all the operational data is stored/indexed. It is therefore necessary to configure SicsOperationalReportingMode and SicsOperationalReportingUrl init parameters in WEB-INF/web.xml.

<init-param>
  <description>
    SICS Operational Reporting Mode
     cloud - Apache Solr Cloud Mode
     server - Apache Solr Server Mode
  </description>
  <param-name>SicsOperationalReportingMode</param-name>
  <param-value>cloud</param-value>
</init-param>

<init-param>
  <description>
    SICS Operational Reporting URL
    This setting is required to connect SICS Operational Reporting Server
    to Solr for Operational Reporting.
  </description>
  <param-name>SicsOperationalReportingUrl</param-name>
  <param-value>localhost:2181/solr</param-value>
</init-param>

SICS Operational Reporting Server Web Application #


Common Features #

Data/Time Filters #

SICS Operational Reporting Web Application has three types of date/time filters, Quick, Relative and Absolute. To show/hide the Date/Time filter view: click on the date/time filter button with the clock symbol in upper right corner of the web page or in the drop-down menu for smaller screen sizes.

Quick #

A Quick date/time filter is a commonly used relative filter. E.g. Today, This Week, This Month, This Year, etc.

Relative #

A Relative date/time filter is used to filter data relative to current date/time. E.g. last number of seconds, minutes, hours, years.

Absolute #

An Absolute date/time filter is used to filter data from a particular time frame. E.g. From: 01.03.2017 00:00:00 To: 04.03.2017 23:59:59

Automatically retrieve new data #

SICS Operational Reporting Web Application will by default retrieve new data from the server every 5 seconds. The update interval can be adjusted or turned off by editing the values in the Auto-refresh panel located in the Data/Time filter view.

Add field value filter #
Table #

If a column value in a table is hyper-linked; it is possible to filter by that value by clicking on the link.

Pie Chart #

All pie charts have drill-down functionality. Filter by the value of a slice by clicking on it.

Bar Chart #

The bar chart on the eMessaging module has drill-down functionality. Filter by the eMessage a bar represents by clicking on it.

Search Form (Walkback Explorer) #

You can apply field value filters by using the search form located in the Filter panel.

Select a field type in the drop-down menu, provide the filter value in the text field and click on the find icon.

Remove field value filter #

Remove previously applied filters by clicking on the [x] link next to the applied filter located in the Info or Filter panel.

Modules #

eMessaging #

Display eMessaging processing benchmarks in SICS.

Login Attempts #

Display login attempts in SICS, both successful and unsuccessful.

Security Violations #

Display security violations in SICS.

Performance Analysis #

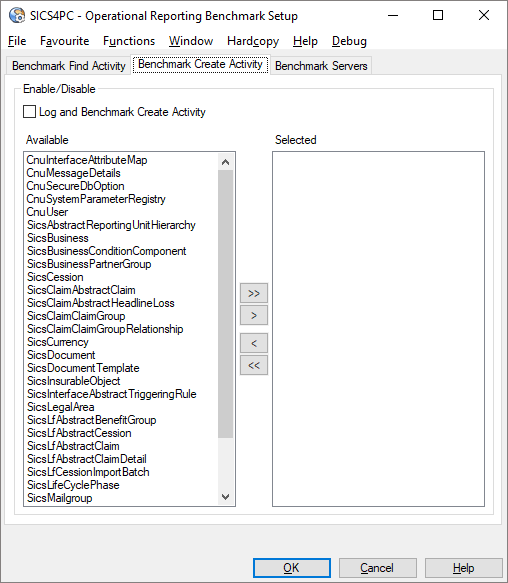

Create Operation #

Display processing benchmarks from create activities in SICS.

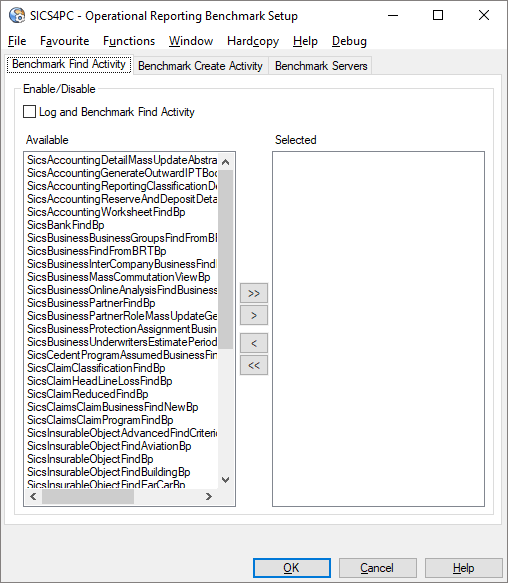

Find Operation #

Display processing benchmarks from find activities in SICS.

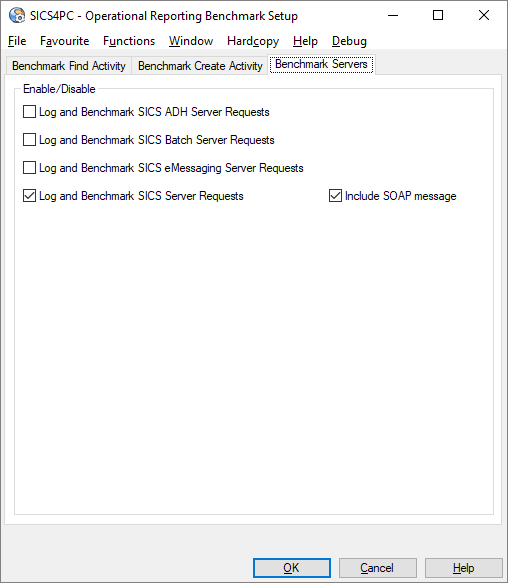

Servers #

SICS ADH Server

Display processing benchmarks from SICS ADH Server requests.

SICS Batch Server

Display processing benchmark from Batch Jobs.

SICS eMessaging Server

Display processing benchmarks from SICS eMessaging Server requests.

SICS API Server

Display processing benchmarks from SICS API Server requests.

Walkback Explorer #

Display Walkback files uploaded to Operational Reporting.

Open a Walkback file #

In the drop-down menu for a file located in the result table: a Walkback file can be viewed in a human readable format by clicking on the Open button.

Download a Walkback file #

In the drop-down menu for a file located in the result table: a Walkback file can be downloaded as ZIP by clicking on the Download button.

SICS Operational Reporting Solr Server and SICS Operational Reporting SolrCloud Mode #

Apache ZooKeeper installation #

The responsibility of Apache ZooKeeper is for caching and distribution of configuration to Nodes. ZooKeeper also maintain an overview of which nodes that are available.

For a reliable ZooKeeper service, you should deploy ZooKeeper in a cluster known as an ensemble. As long as a majority of the ensemble are up, the service will be available.

In a production environment, it is recommended to use more than three and an odd number of ZooKeeper instances in the ensemble. For example, if you have four ZooKeeper instances in the ensemble, ZooKeeper can only handle failure of one instance; if two instances fail, the remaining two instances do not constitute the majority. However, if you have five instances in the ensemble, ZooKeeper can handle failure of up to two instances because the remaining three instances do constitute the majority.

To configure the ZooKeeper ensemble, add the following entry to zoo.cfg for each ZooKeeper instance in the ensemble.

server.<positiveId>=<hostname>:<port1>:<port2>

Example:

server.1=zoo1:2888:3888
server.2=zoo2:2888:3888
server.3=zoo3:2888:3888

Apache ZooKeeper 3.4.13 can be downloaded at:

https://archive.apache.org/dist/zookeeper/zookeeper-3.4.13/zookeeper-3.4.13.tar.gz

Extract zookeeper-3.4.13.tar.gz to a preferred location referred to as <ZK_HOME>.

On Windows you can use tools such as: 7-zip, WinRAR, etc., on Linux please do:

tar -xvfz --strip-components=1 zookeeper-3.4.13.tar.gz <ZK_HOME>

On Linux all the ZooKeeper script file must be made executable, please do:

chmod +x <ZK_HOME>/bin/*

Copy or rename /conf/zoo_sample.cfg to /conf/zoo.cfg

Open /conf/zoo.cfg in a text editor to edit the ZooKeeper configuration.

  • tickTime
    • The basic time unit in milliseconds used by ZooKeeper. It is used to do heartbeats and the minimum session timeout will be twice the tickTime.
  • dataDir
    • The location to store the in-memory database snapshot and, unless specified otherwise, the transaction log of updated to the database.
  • clientPort
    • The port to listen for client connections

To start a ZooKeeper instance on Linux, please do:

<ZK_HOME>/bin/zkServer.sh start

To start a ZooKeeper instance on Windows, please do:

<ZK_HOME>/bin/zkServer.cmd

To stop a running ZooKeeper instance on Linux, please do:

<ZK_HOME>/bin/zkServer.sh stop

To stop a running ZooKeeper instance on Windows, exit the command prompt or enter: ctrl + c.

Solr Installation #

Extract to a preferred location.

To override Solr settings, please edit bin/solr.in.sh (Linux) or bin/solr.in.cmd (Windows).

Note that in production SolrCloud environments, the SOLR_HOST variable should be set to the hostname of the server, as this determines the address of the node when it registers with ZooKeeper.

To start Solr for the first time after installation, simply do:

bin/solr start

This will launch a standalone Solr server in the background of your shell, listening on port 8983.

Alternatively, you can launch Solr in “cloud” mode, which allows you to scale out using sharding and replication.

To launch Solr in cloud mode with embedded ZooKeeper ensemble, do:

bin/solr start -cloud

To launch Solr in cloud mode with external ZooKeeper ensemble, do:

bin/solr start -cloud -z zk1:2181,zk2:2181,zk3:2181

To see all available options for starting Solr, please do:

bin/solr start -help

You can also install Solr as a Windows or Linux service.

To see the available options for installing Solr as a service, do:

bin/install_solr_service -help

After starting Solr, follow the instructions depending on whether Solr is running in server or cloud mode.

Server mode #

Create cores, do:

bin/configure create_cores -p 8983

Cloud mode #

If your ZooKeeper ensemble is or will be shared among other systems besides Solr, you should consider defining application-specific znodes, or a hierarchical namespace that will only include Solr’s files.

Once you create a znode for each application, you add it’s name, also called a chroot, to the end of your connect string whenever you tell Solr where to access ZooKeeper.

Creating a chroot is done with a bin/solr command:

bin/solr zk mkroot /solr -z localhost:2181

Upload configuration to ZooKeeper (i.e. ZooKeeper running at localhost:2181), do:

bin/configure upconfig -z localhost:2181

Create collections, do:

bin/configure create_collections -p 8983

To see available options for create_collections, please do:

bin/configure create_collections -help

Post Solr Installation #

After starting Solr, direct your Web browser to the Solr Admin Console at:

http://localhost:8983/solr/

When finished with your Solr installation, shut it down by executing:

bin/solr stop -all

The -p PORT option can also be used to identify the Solr instance to shutdown, where more than one Solr is running on the machine.

Configuring SICS Desktop Application #

Connect SICS Desktop Application to Solr for Operational Reporting #

To connect SICS Desktop Application to Operational Reporting, SicsOperationalReportingMode and SicsOperationalReportingUrl properties must be configured in conf/sics.global.resources.registry.propeties.

#   SICS Operational Reporting Mode
#
#   Defaults to disabled
#
#   disable - Disable logging to Operational Reporting
#   cloud - Apache Solr Cloud Mode
#   server - Apache Solr Server Mode
SicsOperationalReportingMode=cloud
#
#   SICS Operational Reporting URL
#
#   This setting is required to connect SICS to SICS Operational Reporting.
#   If not set, SICS is not able to configure or log any information to SICS Operational Reporting.
SicsOperationalReportingUrl=localhost:2181/solr

Upload Walkback files to Operational Reporting #

To upload Walkback files to Solr for Operational Reporting, SICS Desktop Application must be connected to Solr for Operational Reporting and the WalkbackMode property value must be set to 2, 3 or 4 in conf/sics.global.resources.registry.propeties.

#   In the event of an unexpected error in SICS, the detailed information about the problem is written to a walkback file.
#   The walkback file could be stored in a folder and/or uploaded to Operational Reporting.
#
#   0 - Disabled
#   1 - Folder Mode (default)
#   2 - Operational Reporting Mode
#   3 - Operational Reporting Mode and Folder Mode
#   4 - Operational Reporting Mode and Folder Mode on failure
WalkbackMode=3

Configuring SICS Servers #

SICS ADH Server Configuration #

Connect SICS ADH Server to Solr for Operational Reporting #

To connect SICS ADH Server to Operational Reporting, SicsOperationalReportingMode and SicsOperationalReportingUrl context parameter must be configured in WEB-INF/web.xml.

<context-param>
  <description>
    SICS Operational Reporting Mode
    Defaults to disabled
    disable - Disable logging to Operational Reporting
    cloud - Apache Solr Cloud Mode
    server - Apache Solr Server Mode
  </description>
  <param-name>SicsOperationalReportingMode</param-name>
  <param-value>cloud</param-value>
</context-param>

<context-param>
  <description>
    SICS Operational Reporting URL
    This setting is required to connect SICS to SICS Operational Reporting.
    If not set, SICS is not able to configure or log
    any information to SICS Operational Reporting.
  </description>
  <param-name>SicsOperationalReportingUrl</param-name>
  <param-value>localhost:2181/solr</param-value>
</context-param>

Upload Walkback files to Operational Reporting #

To upload Walkback files to Solr for Operational Reporting, SICS ADH Server must be connected to Solr for Operational Reporting and the WalkbackMode context parameter value must be set to 2, 3 or 4 in WEB-INF/web.xml.

<context-param>
  <description>
    In the event of an unexpected error in SICS,
    the detailed information about the problem is written to a walkback file.
    The walkback file could be stored in a folder and/or uploaded to Operational Reporting.
    0 - Disabled
    1 - Folder Mode (default)
    2 - Operational Reporting Mode
    3 - Operational Reporting Mode and Folder Mode
    4 - Operational Reporting Mode and Folder Mode on failure
  </description>
  <param-name>WalkbackMode</param-name>
  <param-value>3</param-value>
</context-param>

SICS ADH Server Configuration #

Connect SICS Batch Server to Solr for Operational Reporting #

To connect SICS Batch Server to Operational Reporting, SicsOperationalReportingMode and SicsOperationalReportingUrl context parameter must be configured in WEB-INF/web.xml.

<context-param>
  <description>
    SICS Operational Reporting Mode
    Defaults to disabled
    disable - Disable logging to Operational Reporting
    cloud - Apache Solr Cloud Mode
    server - Apache Solr Server Mode
  </description>
  <param-name>SicsOperationalReportingMode</param-name>
  <param-value>cloud</param-value>
</context-param>

<context-param>
  <description>
    SICS Operational Reporting URL
    This setting is required to connect SICS to SICS Operational Reporting.
    If not set, SICS is not able to configure or log
    any information to SICS Operational Reporting.
  </description>
  <param-name>SicsOperationalReportingUrl</param-name>
  <param-value>localhost:2181/solr</param-value>
</context-param>

Upload Walkback files to Operational Reporting #

To upload Walkback files to Solr for Operational Reporting, SICS Batch Server must be connected to Solr for Operational Reporting and the WalkbackMode context parameter value must be set to 2, 3 or 4 in WEB-INF/web.xml.

<context-param>
  <description>
    In the event of an unexpected error in SICS,
    the detailed information about the problem is written to a walkback file.
    The walkback file could be stored in a folder and/or uploaded to Operational Reporting.
    0 - Disabled
    1 - Folder Mode (default)
    2 - Operational Reporting Mode
    3 - Operational Reporting Mode and Folder Mode
    4 - Operational Reporting Mode and Folder Mode on failure
  </description>
  <param-name>WalkbackMode</param-name>
  <param-value>3</param-value>
</context-param>

SICS eMessaging Server Configuration #

Connect SICS eMessaging Server to Solr for Operational Reporting #

To connect SICS eMessaging Server to Operational Reporting, SicsOperationalReportingMode and SicsOperationalReportingUrl init parameter must be configured in WEB-INF/web.xml.

<init-param>
  <description>
    SICS Operational Reporting Mode
    Defaults to disabled
    disable - Disable logging to Operational Reporting
    cloud - Apache Solr Cloud Mode
    server - Apache Solr Server Mode
  </description>
  <param-name>SicsOperationalReportingMode</param-name>
  <param-value>cloud</param-value>
</init-param>

<init-param>
  <description>
    SICS Operational Reporting URL
    This setting is required to connect SICS to SICS Operational Reporting.
    If not set, SICS is not able to configure or log
    any information to SICS Operational Reporting.
  </description>
  <param-name>SicsOperationalReportingUrl</param-name>
  <param-value>localhost:2181/solr</param-value>
</init-param>

Upload Walkback files to Operational Reporting #

To upload Walkback files to Solr for Operational Reporting, SICS eMessaging Server must be connected to Solr for Operational Reporting and the WalkbackMode init parameter value must be set to 2, 3 or 4 in WEB-INF/web.xml.

<init-param>
  <description>
    In the event of an unexpected error in SICS,
    the detailed information about the problem is written to a walkback file.
    The walkback file could be stored in a folder and/or uploaded to Operational Reporting.
    0 - Disabled
    1 - Folder Mode (default)
    2 - Operational Reporting Mode
    3 - Operational Reporting Mode and Folder Mode
    4 - Operational Reporting Mode and Folder Mode on failure
  </description>
  <param-name>WalkbackMode</param-name>
  <param-value>3</param-value>
</init-param>

SICS API Server Configuration #

Connect SICS eMessaging Server to Solr for Operational Reporting #

To connect SICS API Server to Operational Reporting, SicsOperationalReportingMode and SicsOperationalReportingUrl init parameter must be configured in WEB-INF/web.xml.

<init-param>
  <description>
    SICS Operational Reporting Mode
    Defaults to disabled
    disable - Disable logging to Operational Reporting
    cloud - Apache Solr Cloud Mode
    server - Apache Solr Server Mode
  </description>
  <param-name>SicsOperationalReportingMode</param-name>
  <param-value>cloud</param-value>
</init-param>

<init-param>
  <description>
    SICS Operational Reporting URL
    This setting is required to connect SICS to SICS Operational Reporting.
    If not set, SICS is not able to configure or log
    any information to SICS Operational Reporting.
  </description>
  <param-name>SicsOperationalReportingUrl</param-name>
  <param-value>localhost:2181/solr</param-value>
</init-param>

Upload Walkback files to Operational Reporting #

To upload Walkback files to Solr for Operational Reporting, SICS API Server must be connected to Solr for Operational Reporting and the WalkbackMode init parameter value must be set to 2, 3 or 4 in WEB-INF/web.xml.

<init-param>
  <description>
    In the event of an unexpected error in SICS,
    the detailed information about the problem is written to a walkback file.
    The walkback file could be stored in a folder and/or uploaded to Operational Reporting.
    0 - Disabled
    1 - Folder Mode (default)
    2 - Operational Reporting Mode
    3 - Operational Reporting Mode and Folder Mode
    4 - Operational Reporting Mode and Folder Mode on failure
  </description>
  <param-name>WalkbackMode</param-name>
  <param-value>3</param-value>
</init-param>

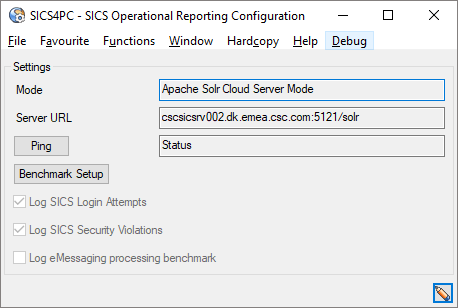

View/Edit SICS Operational Reporting Configuration #

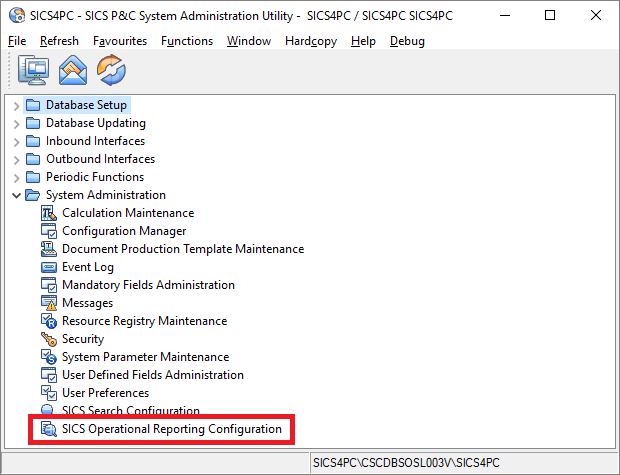

SICS Operational Reporting Configuration can be found in SICS System Administration Utility. It is located under System Administration.

All configurations for SICS Operational Reporting are stored in the Operational Reporting Solr nodes.


In the configuration, you can enable/disable logging for the following:

  • Login Attempts
  • Security Violations
  • eMessaging processing benchmark
  • Find activity benchmark
  • Create activity benchmark
  • SICS ADH Server request benchmark
  • SICS Batch Server request benchmark / batch processing benchmark
  • SICS eMessaging Server request benchmark
  • SICS API Server request benchmark


sics_op_conf_benchmark_find

sics_op_conf_benchmark_create

sics_op_conf_benchmark_servers

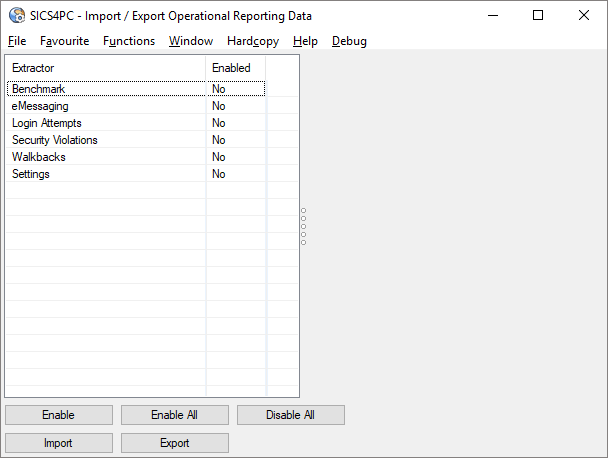

Import / Export Operational Reporting Data #

The Import / Export Import / Export Operational Reporting Data facility can be found in SICS System Administration Utility. It is located under Database Updating.

It facilitates:

  • Easy upgrade of underlying product without losing any data
  • Ability to export and send data to DXC for analysis
  • Backup / Restore

Note that the security use case Import / Export Operational Reporting Data must be assigned to the user role to access the functionality.


In the Import / Export Operational Reporting Data, you can configure what type of data you want to import or export.

You can import/export data to/from a subset of the Operational Reporting Solr collections by enabling a subset of the extractors.

To enable all extractors, click the Enable All button.

To disable all extractors, click the Disable All button.

To enable a selective extractor, first select the extractor that you want to enable and click the Enable button.

To disable a selective extractor, first select the extractor that you want to disable and click the Disable button.

Note that the Enable and Disable button are basically the same button, the button text toggle between Enable and Disable based on the selected extractor.


Date Time Filter #

  • All extractors besides Settings have a Date Time Filter.
  • If From and To date/time are not set, all documents for that collection are imported/exported.
  • If only From data/time is set, all documents after and including the From date/time for that collection are imported/exported.
  • If only To data/time is set, all documents before and including the To date/time for that collection are imported/exported.

Type Filter #

Only the Benchmark extractor have a Type Filter.

With the Type Filter you can for example configure the extractor to only include benchmark logs from SICS ADH Server on import/export.
